## About The Pull Request
123 changed files and multiple crashes after writing broken regex, I
replaced most remains of direct spans with macros. This cleans up the
code and makes it easier to work with in general, see justification for
the original PR. I also fixed a bunch of broken and/or unclosed spans
here too.
I intentionally avoided replacing spans with multiple classes (in most
cases) and spans in the middle of strings as it would impact readability
(in my opinion at least) and could be done later if required.
## Why It's Good For The Game
Cleaner code, actually using our macros, fixes borked HTML in some
places. See original PR.
## Changelog
Nothing player-facing
## About The Pull Request
1. Removes code duplication
2. Fully documents `sortTim()`
3. Makes a define with default sortTim behavior, straight and to the
point for 95% of cases
4. Migrates other sorts into the same file
5. Removes some redundancy where they're reassigning a variable using an
in place sorter
For the record, we only use timSort
## Why It's Good For The Game
More documentation, easier to read, uses `length` over `len`, etc
Should be no gameplay effect at all
## About The Pull Request
This is not player-facing, however it's a good QOL that i made for
downstream modular ruins. The pick-list of maps makes it a bit..
annoying to really grab a ruin quickly - so all this does is add an ID
to the front of them for Space, Lava and Ice respectively.
## Why It's Good For The Game
## Changelog
:cl:Zergspower
admin: renames ruin names to have an identifier in front of it
refactor: converts map plate and jump to ruin to tguilist
/🆑
## About The Pull Request
You can now get station goals in a slightly better way over using a
`locate() in` call on a global list.
The Meteor Satellite goal no longer stores a giant list of ALL OBJECTS
in view. And now correctly only counts turfs.
## Changelog
🆑
fix: Meteor Satellites no longer erroneously count every piece of paper
as a protected turf.
fix: As a result the station goal is slightly more difficult
/🆑
---------
Co-authored-by: LemonInTheDark <58055496+LemonInTheDark@users.noreply.github.com>
## About The Pull Request
This is an update that touches many more things all at once (compared to
my other PRs) meant to make PDAs in general feel more consistent and not
take away from one of the experiences we want to encourage: interaction
between players.
1. Replaced all checks of a 'pda' with a 'modular pc'. This means
technically (though not done in-game currently) other modpcs can hold an
uplink, and microwaves can charge laptops.
2. Speaking of microwave, they now don't break and require
deconstruction if the cell is removed mid-charge.
3. When a Mod PC is out of power, it will now allow the Messenger to
work (which now also doesn't consume any additional power), if the app
exists on the PC. Here's a video demonstration
https://github.com/tgstation/tgstation/assets/53777086/7ae12f81-a271-49b8-95fa-2ba54d2e2d1f
4. Flashlights can't be turned on while the cell is dead
5. I replaced a bunch of program vars with ``program_flags`` and renamed
``usage_flags`` to ``can_run_on_flags``.
6. Added a debug modPC that has every app installed by default. Mafia
had some issues in the past that were unknown because Mafia wasn't
preinstalled with any tablet so was never in create & destroy nor in any
other unit test. This was just an easy solution I had, but PDAs should
get more in-depth unit tests in the future for running apps n stuff- I
just wanted to make sure no other apps were broken/harddeling.
## Why It's Good For The Game
Currently when a PDA dies, its only use is to reply to PDA messages sent
to you, since you can still reply to them. Instead of just fixing it and
telling players to cope, I thought it would be nice to allow PDA
Messenger to still work, as it is a vital app.
You can call it some emergency power mode or whatever, I don't really
mind the reason behind why it is this way.
When I made cells used more on PDAs, my main goal was to encourage
upgrading your PDA and/or limiting how many apps you use at once, I did
not want this to hit on players who use it as a form of interaction.
This is the best of both worlds, I think.
The rest of the changes is just for modularity, if some downstream wants
to add tablets, phone computers, or whatever the hell else, they can
still get just as far as PDAs should be able to get to, hopefully.
## Changelog
🆑
add: PDAs with a dead power cell are now limited to using their
Messenger app.
fix: Microwaves now stop charging PDAs if the cell was removed
mid-charge.
fix: Microwaves can now charge laptops.
fix: PDA Flashlights can't be turned on while the PDA is dead.
fix: You can now hold a laptop up to a camera (if it has a notekeeper
app installed) like PDAs already could.
/🆑
---------
Co-authored-by: lessthanthree <83487515+lessthnthree@users.noreply.github.com>
## About The Pull Request
Replaces all instances of `SSblackbox.record_feedback\("tally",
"admin_verb", 1, (.+)\)` with `BLACKBOX_LOG_ADMIN_VERB($1)`
This makes so the funny comment isn't necessary.
It also reveals one location which someone did not heed the comment, the
`debug_controller` proc copy+pasted the line but did not change the
fourth argument. PEOPLE DON'T READ!
## About The Pull Request
I'm sick of the progress bar harddel, and I've ran into this problem in
the past, so I'm just gonna do something about it
If you want to provide an individual logged bit of info about a harddel,
you can override `/datum/proc/dump_harddel_info()` and return a string
containing "whatever"
Use of this should be limited, this could potentially clutter del logs,
especially if it's used on something that fails often, like pipes
I do think it's still useful tho. It's output ingame, in the logs, and
in unit test failures. Hopefully all nicely tho I'm only really 100%
sure about in game.
## About The Pull Request
Fixes a bunch of stuff broken by #76822, including APC control console,
malf blackout ability, shunted malf pinpointing, Admin APC recharge and
others.
## Why It's Good For The Game
Yes.
## Changelog
:cl:Thebleh
fix: Fixed several APC related issues.
/🆑
## About The Pull Request
Hello friends, I've been on a bit of a lighting kick recently, and I
decided I clearly do not have enough things to work on as it is.
This pr adds angle support to static lights, and a concepting/debug tool
for playing with lights on a map.
Let's start from first principles yeah?
### Why Angled Lights?
Mappers, since they can't actually see a light's effect in editor, tend
to go off gut.
That gut is based more off what "makes sense" then how things actually
work
This means they'll overplace light sources, and also they tend to treat
lights, particularly light "bars" (the bigger ones) as directional.
So you'll have two lights on either sides of a pillar, lights inside a
room with lights outside pointing out, etc.
This has annoying side effects. A lot of our map is overlit, to the
point that knocking out a light does.... pretty much nothing.
I find this sad, and would like to work to prevent it. I think dark and
dim, while it does not suit the normal game, is amazing for vibes, and I
want it to be easier to see that.
Angled lights bring how lights work more in line with how mappers expect
lights work, and avoids bleedover into rooms that shouldn't be bled
into, working towards that goal of mine.
### How Angled Lights?
This is more complex then you'd first think so we'll go step by step
Oh before we start, some catchup from the last time I touched lighting
code.
Instead of doing a lighting falloff calculation for each lighting corner
(a block that represents the resolution of our lights) in view we
instead generate cached lightsheets. These precalculate and store all
possible falloffs for x and y distances from a source.
This is very useful for angle work, since it makes it almost totally
free.
Atoms get 2 new values. light_angle and light_dir
Light angle is the angle the light uses, and light_dir is a cardinal
direction it displays in
We take these values, and inside sheetbuilding do some optional angle
work. getting the center angle, the angle of a pair of coords, and then
the delta between them.
This is then multiplied against the standard falloff formula, and job
done.
We do need some extra fenangling to make this all work nicely tho.
We currently use a pixel turf var stored on the light source to do
distance calculations.
This is the turf we pretend the light source is on for visuals, most
often used to make wall lights work nice.
The trouble is it's not very granular, and doesn't always have the
effect you might want.
So, instead of generating and storing a pixel turf to do our distance
calculations against, we store x and y offset variables.
We use them to expand our working range and sheet size to ensure things
visually make sense, and then offset any positions by them.
I've added a way for sources to have opinions on their offsets too, and
am using them for wall lights.
This ensures the angle calculations don't make the wall behind a light
fulldark, which would be silly.
### Debug Tool?
In the interest of helping with that core problem, lights being complex
to display, I've added a prototyping tool to the game.
It's locked behind mapping verbs, and works about like this.
Once the verb is activated, it iterates over all the sources in the
world (except turfs because those are kinda silly), outlining and
"freezing" them, preventing any future changes.
Then, it adds 3 buttons to the owners of a light source.
The first button toggles the light on and off, as desired.
The third allows you to move the source around, with a little targeting
icon replacing your mouse
The second tho, that's more interesting.
The second button opens a debug menu for that light
There's a lot here, let's go through it.
Bit on the left is a list of templates, which allow you to sample
existing light types (No I have no idea why the background is fullwhite,
need to work on that pre merge)
You can choose one by clicking it, and hitting the upload button.
This replaces your existing lighting values with the template's,
alongside replacing its icon and icon state so it looks right.
There are three types as of now, mostly for categorization. Bar, which
are the larger typically stronger lights, Bulb, which are well, bulbs,
and Misc which could be expanded, but currently just contains floor
lights.
Alongside that you can manually edit the power, range, color and angle
of the focused light.
I also have support for changing the direction of the light source,
since anything that uses directional lighting would also tie light dir
to it.
This isn't *always* done tho, so I should maybe find a way to edit light
dir too.
My hope is this tool will allow for better concepting of a room's
lights, and easier changing of individual object's light values to suit
the right visuals.
### Lemon No Why What
Ok so I applied angle lights to bars and bulbs, which means I am
changing the lighting of pretty much every map in the codebase.
I'm gonna uh, go check my work.
Alongside this I intend to give lighting some depth. So if there's room
to make a space warmer, or highlight light colors from other sources, I
will do that.
(Images as examples)
I also want to work on that other goal of mine, making breaking lights
matter. So I'll be doing what I can to ensure you only need to break one
light to make a meaningful change in the scene.
This is semi complicated by one light source not ever actually reaching
fullbright on its own, but we do what we must because we can.
I'm as I hope you know biased towards darker spaces, I think contrast
has vibes.
In particular I do not think strong lights really suit maintenance.
Most of what is used there are bulbs, so I'm planning on replacing most
uses with low power bulbs, to keep light impacts to rooms, alongside
reducing the amount of lights placed in the main tunnels
**If you take issue with this methodology please do so NOW**, I don't
want to have to do another pass over things.
Oh also I'm saving station maps for last since ruins are less likely to
get touched in mapping march and all.
### Misc + Finishing Thoughts
Light templates support mirroring vars off typepaths using a subtype,
which means all the templates added here do not require updating if the
source type changes somehow. I'd like to expand the template list at
some point, perhaps in future.
I've opened this as a draft to make my intentions to make my changes to
lights known, and to serve as motivation for all the map changes I need
to do.
### Farish Future
I'm unhappy with how we currently configure lights. I would like a
system that more directly matches the idea of drawing falloff curves,
along with allowing for different falloffs for different colors,
alongside extending the idea to angle falloff.
This would make out of engine lighting easier, allow for nicer looking
lights (red to pink, blue to purple, etc), and improve accessibility by
artists.
This is slightly far off, because I have other obligations and it's
kinda complicated, but I'd like to mention it cause it's one of my many
pipedreams.
## Changelog
🆑
add: Added angle lighting, applies it to most wall lights!
add: Adds a lighting prototyping tool, mappers go try it out (it's
locked behind the mapping verb)
/🆑
---------
Co-authored-by: MMMiracles <lolaccount1@hotmail.com>
## About The Pull Request
Removes all of the duplicate global lists for specific machine types
where the only thing they do is store all machines of that type.
Adds machine tracking to SSmachines in the form of a list for all
machines, and then an associative list for machines by their type.
Previously we have machines in multiple global lists, such as airlocks
being in GLOB.doors, GLOB.airlocks, GLOB.machines.
This makes that not a thing, and also means that iterating through
GLOB.machines looking for a specific type is no longer as expensive.
## About The Pull Request
Gives duffelbags their proper slot count
They inherited this from backpacks, but I sorta just forgot about that
[Creates "levels" of locked objects, uses that to make locked duffels
work](c613c00f62)
[c613c00](c613c00f62)
Turns locked into something that holds defines, this makes life a lot
easier.
Requires a lot of boilerplate because of how many uses of these procs
there are and all the passthrough and shit.
Adds a few outfit subtypes to avoid this class of failure in future.
Renames the args in a few but not all touched procs, one thing at a time
Closes#76407Closes#76430 Had the lock check in the wrong place
Closes#76441 GOD I HATE TK SO MUCH
Wrote half the pr without glasses so if it's weird gimme some grace
yeah?
## Changelog
🆑
fix: Fixes some fuck with duffelbags, them not holding enough + issues
with spawning gear in them (job shit and all)
/🆑
## About The Pull Request
This PR changes the request consoles in the folowing ways:
- The request console's had some very old UI, so I decided to convert it
to tgUI.
- Cleans up and changes various variable names. Also removes a
historical comment (desouls the file)
- Sending an announcement now has a cooldown of 30 seconds like the
message console priority announcement
- Audio feedback on successful and erroneous message give a little audio
feedback
- Reply is now Quick Reply, which you do in a popup
I have half a mind to remove the long material list from the ORM, as
some people told me I should, but for now it stays.
<details>
<summary>Screenshots of the new UI</summary>
</details>
I originally planned to add mapping helpers, but decided to delay it
until a future PR.
## Why It's Good For The Game
TgUI is good and powerful.
## Changelog
🆑
refactor: converts the request console to tgui
/🆑
## About The Pull Request
Corrects `record_feedback()`'s copy/paste comment.
## Pointless history
Originally being added in e2a8a5e, it kept its name and args for quite a
few years, that was until #32188 which had it renamed to
`record_feedback` and its args pretty much doubled. In between these
times the known copy/paste comment was already around, but that wasn't
updated, until now apparently.
## About The Pull Request
Removes network_id as it was completely unused now.
Also reworks the maints access secret buttons to work with how accesses
work now, taking into account req_one_access. This is theoretically a
problem when we moved to req_one_access more often in maints so
departments can access their own maint areas.
## Why It's Good For The Game
This is just minor changes I found while trying to edit other things,
and thought I should PR it.
## Changelog
🆑
admin: Secret buttons for Engineering/Brig maint accesses should now
work more consistently.
/🆑
## About The Pull Request
CTF code is rather infamous for being poor and hard to actually work
with, I wanted to add a feature for a mapping march project but the code
would not allow for it, so here we are refactoring the entire thing.
## Why It's Good For The Game
Replaces some really bad code with slightly less bad code. Should make
it much easier to add features onto CTF in the future.
## Changelog
🆑
refactor: CTF has been entirely refactored.
fix: Respawn times for CTF now work.
qol: CTF players are alerted during control point games when one team is
half way to winning.
admin: CTF instagib mode can now be toggled from the secrets panel.
/🆑
## About The Pull Request
Damn that's a long title.
Admin Verbs can be used in the verb bar with hyphens instead of spaces
again.
## Why It's Good For The Game
Admin muscle memory
## Changelog
## About The Pull Request
This, as the title states, fixes a spelling error in the confirmation
dialog for the Reload Configuration verb.
Specifically, it changes "modificat**oi**ns" to "modificat**io**ns".
## Why It's Good For The Game
It's nice to not have to look at spelling errors.
## Changelog
🆑
spellcheck: The word "modifications" is now spelled correctly in the
Reload Configuration confirmation dialog.
/🆑
## About The Pull Request

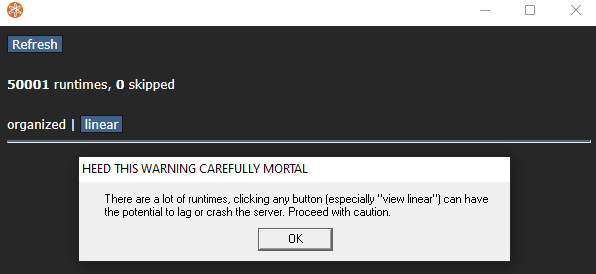

View runtimes will warn the user if the server's experience a large
amount of runtime errors
- Why not fix the runtimes?
We're not perfect
- Why not make the runtime viewer not crash the server?
I don't even know why it does it, someone else can accomplish that
- Why not find the exact threshold which it happens?
That's a waste of an afternoon
- Why not stop them from opening it wholesale?
Seeing the number is still kinda useful
- Admin Issue
Maintainers have crashed servers too
## Why It's Good For The Game
Maybe admins will stop crashing the game
## Changelog
🆑 Melbert
admin: Adds a warning to "View Runtimes" informing you (yes, you) that
it can (and will) crash the server if you attempt to render 100,000
runtimes into the UI at once
/🆑
## About The Pull Request
**Comes with an UpdatePaths!**
Removes the tablet subtype, PDAs now replaces them entirely.
Nukie and Silicon tablets are now subtypes of the PDA instead, while
contractor ones were removed entirely as they didn't do anything and
were unused (though it wouldn't be hard to re-add).
Nukie PDAs are now the only type of PDA that uses modular_tablets.dmi,
which is just larger icons of modular_pda. Each application requires an
icon state in both of these, for 2 different sizes, which makes it
annoying to make new applications, especially if it can also run on
computers/laptops.
### Icons
Because Silicon tablets are now a subtype of PDA, they use PDA icons
instead of tablet ones. Luckily for us, they already exist in code.
AI's don't use a tablet icon though, so they aren't affected.
## Why It's Good For The Game
There's very little difference between tablets and PDAs, PDAs overshadow
them in every single way, so at this point I don't see why we should
have both of these, and if you compare the two in usefulness and actual
in-game use by players, it's a no-brainer than the item all players get
roundstart and comes with a messenger should be the one we go with.
Also as said in the about section, when making an app you would need to
make icon states for the program running for all hardware it can run on,
which is Computer, Laptop, PDA, and Tablet.
Laptop is just a smaller computer icon
PDA is just a smaller tablet icon
However, you can't simply shrink the size of the icon, instead you have
to completely resprite the same app icon FOUR TIMES for it to not
bluescreen on all these different devices.
<details>
<summary>
Here's examples of it
</summary>
Computer (NOTE: *They share the same icon file as regular computers*)
<img
src="https://user-images.githubusercontent.com/53777086/203876801-486a8054-489a-4983-bdad-a2599b4dc379.png"/>
Laptop
<img
src="https://user-images.githubusercontent.com/53777086/203876333-58e5d135-f4c6-4a02-8948-1df771e294a4.png"/>
Tablet
<img
src="https://user-images.githubusercontent.com/53777086/203876352-816c7fb1-c681-40b9-99e0-052f49632c7f.png"/>
PDA
<img
src="https://user-images.githubusercontent.com/53777086/203876358-1cf7253d-3c6a-456a-8133-ebf7f0351637.png"/>
</details>
If we wish to help in simplifying this, we should remove tablet icons
entirely, which means 1 less icon to worry about. To do this, we'd need
to resprite nukie PDAs, however I am very much not a spriter and never
tried GAGS, so I'll leave it to someone else to do.
## Changelog
🆑
del: Tablets are now removed, PDAs are now the base 'tablet'. Silicon
and nukie tablets are now PDAs.
/🆑
## About The Pull Request
Removes the last computer part in the game: ID parts
Because this is removed, I also removed all computer hardware in the
game, and removed mentions of it in the game.
There is still 'hardware', as in Computer, Tablet, or Laptop.
Computers now all hold one ID slot by default, the only time a second ID
was needed was to use the access of both at once, and for the ID
modification application. This was now replaced with a new UI that only
has one tab, one ID slot:
https://user-images.githubusercontent.com/53777086/202801939-151b783f-75c8-46bf-a6c5-1b57b0d0da8e.mp4
## Why It's Good For The Game
Computer hardware is finally dead 🦀
## Changelog
🆑
balance: All modular computers now only have one ID slot, and cannot be
upgraded.
qol: The HoP's access application now only has one app, logging in will
directly modify the ID that's in it, making it less confusing to swap
back and forth.
/🆑
## About The Pull Request
- Fully heal can be passed a series of flags detailing what all is
healed by the proc. This allows for things to provide
almost-but-not-quite fully heals.
- Uses this in Adminordrazine, so that it stops being a pain to update
every time fully heal is updated.
This includes some small balance changes which i'll go over, nothing
extremely noticable.
## Why It's Good For The Game
Allows for more precise control over full heals.
## Changelog
🆑 Melbert
refactor: Fully heal can be passed a series of flags. As a result, some
things which previously did a full heal might heal slightly less, or
some things which did partial full heals might do slightly more.
fix: Adminordrazine will no longer completely break every facet of a
person
admin: Ahealing a changeling will refill all of their chems.
/🆑
## About The Pull Request
This replaces needless GLOB.machines with more precise lists whenever
one existed, plus adding a new one for CTF machines.
## Why It's Good For The Game
GLOB.machines holds every single /obj/machinery in the game, so checking
the whole list for stuff is pretty big. This aims to cut that down by
using smaller lists whenever possible. I also gave CTF a new list
because it checked machines very often.
## Changelog
Nothing player facing.
Makes the code compatible with 515.1594+
Few simple changes and one very painful one.
Let's start with the easy:
* puts call behind `LIBCALL` define, so call_ext is properly used in 515
* Adds `NAMEOF_STATIC(_,X)` macro for nameof in static definitions since
src is now invalid there.
* Fixes tgui and devserver. From 515 onward the tmp3333{procid} cache
directory is not appened to base path in browser controls so we don't
check for it in base js and put the dev server dummy window file in
actual directory not the byond root.
* Renames the few things that had /final/ in typepath to ultimate since
final is a new keyword
And the very painful change:
`.proc/whatever` format is no longer valid, so we're replacing it with
new nameof() function. All this wrapped in three new macros.
`PROC_REF(X)`,`TYPE_PROC_REF(TYPE,X)`,`GLOBAL_PROC_REF(X)`. Global is
not actually necessary but if we get nameof that does not allow globals
it would be nice validation.
This is pretty unwieldy but there's no real alternative.
If you notice anything weird in the commits let me know because majority
was done with regex replace.
@tgstation/commit-access Since the .proc/stuff is pretty big change.
Co-authored-by: san7890 <the@san7890.com>
Co-authored-by: Mothblocks <35135081+Mothblocks@users.noreply.github.com>
## About The Pull Request
Area contents isn't a real list, instead it involves filtering
everything in world
This is slow, and something we should have better support for.
So instead, lets manage a list of turfs inside our area. This is simple,
since we already move turfs by area contents anyway
This should speed up the uses I've found, and opens us up to using this
pattern more often, which should make dev work easier.
By nature this is a tad fragile, so I've added a unit test to double
check my work
Rather then instantly removing turfs from the contained_turfs list, we
enter them into a list of turfs to pull out, later.
Then we just use a getter for contained_turfs rather then a var read
This means we don't need to generate a lot of usage off removing turf by
turf from space, and can instead do it only when we need to
I've added a subsystem to manage this process as well, to ensure we
don't get any out of memory errors. It goes entry by entry, ensuring we
get no overtime.
This allows me to keep things like space clean, while keeping high
amounts of usage on a sepearate subsystem when convienient
As a part of this goal of keeping space's churn as low as possible, I've
setup code to ensure we do not add turfs to areas during a z level
increment adjacent mapload. this saves a LOT of time, but is a tad
messy
I've expanded where we use contained_turfs, including into some cases
that filter for objects in areas. need to see if this is sane or not.
Builds sortedAreas on demand, caching until we mark the cache as
violated
It's faster, and it also has the same behavior
I'm not posting speed changes cause frankly they're gonna be a bit
scattered and I'm scared to.
@Mothblocks if you'd like I can look into it. I think it'll pay for
itself just off `reg_in_areas_in_z` (I looked into it. it's really hard
to tell, sometimes it's a bit slower (0.7), sometimes it's 2 seconds
(0.5 if you use the old master figure) faster. life is pain.)
## Why It's Good For The Game
Less stupid, more flexible, more speed
Co-authored-by: san7890 <the@san7890.com>
Splits head dmi into separate files for both mob and obj icons. Kept similar to suit split categorization + some more. New files include beanie, bio, chaplain, costume, cowboy, default, hats(softcaps, fedoras, head caps, generic hats), helmet(helmets and other armored headgear/hoods), spacehelm, utility(hardhats, mostly work related hats), wizard.
Moves animal/pet head sitting icons to 1 folder, pets_head.dmi
Renames PAI head sitting icon file to pai_head.dmi
About The Pull Request
I've reworked multiz. This was done because our current implementation of multiz flattens planes down into just the openspace plane. This breaks any effects we attach to plane masters (including lighting), but it also totally kills the SIDE_MAP map format, which we NEED for wallening (A major 3/4ths resprite of all wall and wall adjacent things, making them more then one tile high. Without sidemap we would be unable to display things both in from of and behind objects on map. Stupid.)
This required MASSIVE changes. Both to all uses of the plane var for reasons I'll discuss later, and to a ton of different systems that interact with rendering.
I'll do my best to keep this compact, but there's only so much I can do. Sorry brother.
Core idea
OK: first thing.
vis_contents as it works now squishes the planes of everything inside it down into the plane of the vis_loc.
This is bad. But how to do better?
It's trivially easy to make copies of our existing plane masters but offset, and relay them to the bottom of the plane above. Not a problem. The issue is how to get the actual atoms on the map to "land" on them properly.
We could use FLOAT_PLANE to offset planes based off how they're being seen, in theory this would allow us to create lens for how objects are viewed.
But that's not a stable thing to do, because properly "landing" a plane on a desired plane master would require taking into account every bit of how it's being seen, would inherently break this effect.
Ok so we need to manually edit planes based off "z layer" (IE: what layer of a z stack are you on).
That's the key conceit of this pr. Implementing the plane cube, and ensuring planes are always offset properly.
Everything else is just gravy.
About the Plane Cube
Each plane master (except ones that opt out) is copied down by some constant value equal to the max absolute change between the first and the last plane.
We do this based off the max z stack size detected by SSmapping. This is also where updates come from, and where all our updating logic will live.
As mentioned, plane masters can choose to opt out of being mirrored down. In this case, anything that interacts with them assuming that they'll be offset will instead just get back the valid plane value. This works for render targets too, since I had to work them into the system as well.
Plane masters can also be temporarily hidden from the client's screen. This is done as an attempt at optimization, and applies to anything used in niche cases, or planes only used if there's a z layer below you.
About Plane Master Groups
BYOND supports having different "maps" on screen at once (IE: groups of items/turfs/etc)
Plane masters cannot cover 2 maps at once, since their location is determined by their screen_loc.
So we need to maintain a mirror of each plane for every map we have open.
This was quite messy, so I've refactored it (and maps too) to be a bit more modular.
Rather then storing a list of plane masters, we store a list of plane master group datums.
Each datum is in charge of the plane masters for its particular map, both creating them, and managing them.
Like I mentioned, I also refactored map views. Adding a new mapview is now as simple as newing a /atom/movable/screen/map_view, calling generate_view with the appropriate map id, setting things you want to display in its vis_contents, and then calling display_to on it, passing in the mob to show ourselves to.
Much better then the hardcoded pattern we used to use. So much duplicated code man.
Oh and plane master controllers, that system we have that allows for applying filters to sets of plane masters? I've made it use lookups on plane master groups now, rather then hanging references to all impacted planes. This makes logic easier, and prevents the need to manage references and update the controllers.
In addition, I've added a debug ui for plane masters.
It allows you to view all of your own plane masters and short descriptions of what they do, alongside tools for editing them and their relays.
It ALSO supports editing someone elses plane masters, AND it supports (in a very fragile and incomplete manner) viewing literally through someone else's eyes, including their plane masters. This is very useful, because it means you can debug "hey my X is yorked" issues yourself, on live.
In order to accomplish this I have needed to add setters for an ungodly amount of visual impacting vars. Sight flags, eye, see_invis, see_in_dark, etc.
It also comes with an info dump about the ui, and plane masters/relays in general.
Sort of on that note. I've documented everything I know that's niche/useful about our visual effects and rendering system. My hope is this will serve to bring people up to speed on what can be done more quickly, alongside making my sin here less horrible.
See https://github.com/LemonInTheDark/tgstation/blob/multiz-hell/.github/guides/VISUALS.md.
"Landing" planes
Ok so I've explained the backend, but how do we actually land planes properly?
Most of the time this is really simple. When a plane var is set, we need to provide some spokesperson for the appearance's z level. We can use this to derive their z layer, and thus what offset to use.
This is just a lot of gruntwork, but it's occasionally more complex.
Sometimes we need to cache a list of z layer -> effect, and then use that.
Also a LOT of updating on z move. So much z move shit.
Oh. and in order to make byond darkness work properly, I needed to add SEE_BLACKNESS to all sight flags.
This draws darkness to plane 0, which means I'm able to relay it around and draw it on different z layers as is possible. fun darkness ripple effects incoming someday
I also need to update mob overlays on move.
I do this by realiizing their appearances, mutating their plane, and then readding the overlay in the correct order.
The cost of this is currently 3N. I'm convinced this could be improved, but I've not got to it yet.
It can also occasionally cause overlays to corrupt. This is fixed by laying a protective ward of overlays.Copy in the sand, but that spell makes the compiler confused, so I'll have to bully lummy about fixing it at some point.
Behavior changes
We've had to give up on the already broken gateway "see through" effect. Won't work without managing gateway plane masters or something stupid. Not worth it.
So instead we display the other side as a ui element. It's worse, but not that bad.
Because vis_contents no longer flattens planes (most of the time), some uses of it now have interesting behavior.
The main thing that comes to mind is alert popups that display mobs. They can impact the lighting plane.
I don't really care, but it should be fixable, I think, given elbow grease.
Ah and I've cleaned up layers and plane defines to make them a bit easier to read/reason about, at least I think.
Why It's Good For The Game
<visual candy>
Fixes#65800Fixes#68461
Changelog
cl
refactor: Refactored... well a lot really. Map views, anything to do with planes, multiz, a shit ton of rendering stuff. Basically if you see anything off visually report it
admin: VV a mob, and hit View/Edit Planes in the dropdown to steal their view, and modify it as you like. You can do the same to yourself using the Edit/Debug Planes verb
/cl
About The Pull Request
When CTF map unloading was originally created in had an unforeseen consequence of not entirely removing parts of the ongoing CTF round, namely the flags, as a result of this, this system that was originally made as a precursor to map rotation was not really usable. Since this was added various PRs have made this more and less buggy but the recent CTF voting PR has caused unloading CTF rounds to be a one way process without far more involved admin intervention to reverse. As such, I've made the disable CTF buttons admins have access to only disable CTF and not unload the map entirely. I've left the function to unload the map in incase a situation arises where an admin or maintainer really needs to get rid of the CTF map.
Removing this functionality also removes a really clunky but theoretical function of it, being that you could repeatedly unload and reload the CTF map to get one of your choice, since this is not an option anymore this PR also allows admins to pick a CTF map when they start CTF themself.
EDIT: I fixed the bug introduced by the CTF voting PR, CTF maps can now be reloaded after being unloaded, the flag issue is still around so it shouldn't be used without admin supervision however. Also unloading is a debug verb now.
Why It's Good For The Game
Map unloading was super buggy so it shouldn't be easily accessible.
Since admins cannot repeatedly unload and reload CTF maps anymore to get the one they want they can now just pick the one they want from a list which is significantly less dumb.
Changelog
cl
admin: When admins start CTF they can now choose which map is played or choose random as its always been
admin: Admins can no-longer permanently break CTF by unloading the map accidentally
spellcheck: Fixed a typo in the Map Description for CTF Cruiser
fix: CTF can now be reloaded after being unloaded
/cl
A pretty heavy refactor for pAIs that just spilled into a rework.
Attempts to fully document and organize backend code.
Fixes a large number of bugs left untouched for a decade.
Breaks down the frontend into subcomponents.
Rebalances their software modules.
(should) fix pAI faces get removed if you activate them during alert #68242
* Updates Test Station Areas Verb to filter better
Hey there,
So, previously we ran a "blacklist" system to filter out the specific areas we never wanted to see, and only ever checked areas that were on a station Z-level. This worked great four years ago, but now we have IceBoxStation. IceBox mingles several different types of areas that would take too long to blacklist, so I chose to implement a "whitelist" in concurrence with it.
We now have all station areas be under the `/area/station` path, which is quite useful. So, this will now always check for a station z-level, ensure that it's not in the blacklist (areas that we never wanna check, like the holodeck, or the bomb range that I just added), as well as the fact that it's whitelisted as well. This is very useful because otherwise, IceBox Test Areas would have these massive lists full of redundant, useless area spam, so this should condense it down a bit.
* AtmoZphere tablet app now has the previous functionality of the BreatheDeep cartridge's scanning ability, meaning you can swap to analyzer mode to analyze with right-click.
Three main things I do:
Reinforce the remap that i have made with code changes, making the atmos control devices sane and easy to put if someone else stumbles upon this part of the code again. (a4aea1e - f16e620)
Splits the ordnance areas and renames them, kills ordnance misc and things that have nothing to do with ordnance (anymore?) moves them to exp_lab (useful stuff here) and aux_lab (fluff stuff here like laser range in delta or second circuit lab in tram). (0c99f9f- 3c82a88)
Adds a roundstart program disk containing nt frontier to the ordnance office table. Added a hint to file manager there too to help give players a nudge on how to publish papers. (fd747dc)
First one: Makes mapping these things not require varedit, nicer for other people that dont know how the atmos control stuffs works.
Second one: Misc lab has nothing to do with ordnance jesus christ. Also ord hallway is now irrelevant, our ordnance labs are very far from box now. Will probably make downstreams a bit angry for a while though since they might not be fully up to date on the ordnance maps.
Third one: Pretty much justified it in the about section.
Why is this not atomic: This touches all five maps and needs code backing, so I might as well combine them into one maintenance PR instead of giving my peers merge conflict three times.
* Removes all supurfolus uses of QDEL_HINT_LETMELIVE
This define exists to allow abstract, sturucturally important things to
opt out of being qdeleted.
It does not exist to be a "Immune to everything" get out of jail free
card.
We have systems for this, and it's not appropriate here.
This change is inherently breaking, because things might be improperly
qdeling these things. Those issues will need to be resolved in future,
as they pop up
* Changes all needless uses of COMSIG_PARENT_PREQDELETED
It exists for things that want to block the qdel. If that's not you,
don't use it
* Adds force and hard del verbs, for chip and break glass cases
respectively
The harddel verb comes with two options before it's run, to let you
tailor it to your level of fucked
* Damn you nova
Adds proper parent returns instead of . = ..()
Co-authored-by: Seth Scherer <supernovaa41@gmx.com>
* Ensures immortality talismans cannot delete their human if something goes fuckey. Thanks ath/oro for pointing this out
Co-authored-by: Seth Scherer <supernovaa41@gmx.com>
Areas.dmi right now houses all of our mapped turfs icons (which is roughly 400 icons). Not an issue, but it's incredibly large and clunky to navigate right now. This isn't an issue for the average coder and/or player code diving, but it is for mappers wanting to add new turfs. Currently, the file has some organization, but its still an overall mess. This PR aims to slice the behemoth with multiple .dmi files corresponding to specific areas.
I also plan to repath /area/* -> /area/station/* for station turf only. This is to clean it up, as most other turfs follow this format (that being /area/turf_zone/*).
I'm also writing an update paths file as I go along.
* Refactors dizziness into a status effect
* Refactors the dizziness setter to use the new kind
* Drunkness.
- Should drunk continue to work off of a magic value or be swapped to duration? I've not yet decided: For understandability it's preferabale for "drunk" to use a timer (they are drunk for 3 more minutes), but both adding drunk and decreasing drunk currently use weird calculations which would be difficult to carry over.
- Ballmer is a liver trait
* Dizzy was a setter, not an adjuster
* Does all the drunk effects over
- refactors examine text fully
- refactors stabilized blacks because of this
* Removed
* repaths, fixes some issues
* Minor fixes
* Some erroneous changes
* Fixes some dizziness errors
* Consistency thing
* Warning
* Undoes this change, I dont like its implementation
* max_duration
* Max amount
* Should be a negative
* max duration
* drunk doesn't tick on death
* Rework dizziness strength
* Erroneous dizzy change
* Fixes return type
Converts PDA functions and applications over to modular tablets and devices, namely the messaging function. HREF data code is quite honestly clunky and difficult to work with, as I've definitely experienced whilst working on this. By moving from this system over the easier to read (and frankly, easier to add to) TGUI system, you get cleaner looking and more user friendly UIs and a greater degree of standardization amongst other UIs.
Co-authored-by: Seth Scherer <supernovaa41@gmx.com>
Co-authored-by: GoldenAlpharex <58045821+GoldenAlpharex@users.noreply.github.com>
Co-authored-by: Aleksej Komarov <stylemistake@gmail.com>
About The Pull Request
https://imgur.com/a/pMMEi4ihttps://imgur.com/a/xCrIcz4
Title, really.
Adds an ingame guide to atmos. Currently hooked to the atmos monitors, analyzer, and the tablet app.
Lots of reaction data not implemented yet, banking on the cleanup to get merged first, so drafting.
Done, all reactions in. Haven't double checked them though.
Code is pretty much finished, feel free to take a look. Ill probably retidy them while adding stuffs so no rush.
Might add a reaction handbook obj later Implemented in analyzer.
Dotted tooltip idea shamelessly stolen from preferences.
Lots of the diffs are from breaking the sensor file up, dont worry about it.
Why It's Good For The Game
Less need to open the wiki in another page I guess.
Changelog
cl
add: Added an ic atmos reaction guide. Available in your atmos control consoles/monitors, ntosatmos app, and analyzer.
code: Some changes to how gas canister descriptions are generated.
/cl
Main Takeaways For Mappers:
Use monitored pathed atmos devices very carefully. Also dont put atmos_sensors willy nilly. They are used to hook to atmos control monitors.
We want to keep at most one device broadcasting for each of the atmos sensor, inlets, and outlets. Run the mapping verb Check Atmos Chamber Devices to be sure, though this might not catch everything.
Some of the warning are pretty harmless. For example if you have reconnected the "station atmos monitor" and you get no listener for distro/waste loop warning, it's safe to ignore.
I don't know what the maptainer policy is on making new subtypes for offstation content, but if you do please branch off the general ones instead of the specific gas ones. If you aren't making a new subtype, varedit the general ones too.
About The Pull Request:
Need Would prefer this to be merged before #65271 (In game atmos guide).
Not strictly necessary, just makes me sleep better knowing the handbook wont die alongside the rest of the UI.
Fixes#36668 (Atmos Monitoring Consoles don't update it's sensors to the new tank after reconnect())
Fixes#32122 (Mix console fucked after reconnecting it)
Also made the distro meter thing broadcast more info instead of just the pressure, because I'm sure nobody would care and it would make my life easier.
A small high-level overview in case this breaks again in the future:
A signal datum (not DCS) is sent by the atmospheric devices (injectors and vents) and will be received by the atmos computers. The data is then stored at the monitor object and then passed to the UI. This initial signal is sent by `broadcast_signal()`, called by `atmos_init()`.
New sensors/vents (if you can actually get them in game, still only adminspawn/wrenchables afaik) will also initiate the conversation if atmos_init() is called, so it works fine. This means you need to unwrench and re-wrench the devices if you adminspawn them though, ugh.
In case of a newly built computer, it needs to be the one that prompt the data to the devices, so we send a request signal. This is a bit inefficient since it doesnt work off of callbacks and assocs like DCS, but won't really matter since we're doing this rarely.
We only talk with the injectors and vents when necessary here, while sensors and meters keep beeping with every process_atmos() tick so they rarely break.
Why It's Good For The Game:
Messy code gone (debatable).
Refactored the atmos control console devices. The ones that hook to the big turf chambers.
Distro meter now broadcast the whole gasmix info instead of just pressure to the monitors.
Lavaland syndie's atmos chamber vents are now actually configurable. Moved a few things around to accomodate this.
Lavalannd syndie chambers hooked to distro and moved distro pipe to layer2
atmos monitors can detect reactions now.
Some minor code changes to how anomaly refinery and implosion compressor show the gas info. No changes expected, report if bug.
recoded checks for atmos chamber abnormalities in debug verbs.
* Adds a colorblind accessability testing tool
I keep finding myself worrying about if things I create will be parsable
for colorblind people. So I've made a debug tool for approximating
different extreme forms of colorblindness.
It's very very much a hack. We can't do the proper correction required
to actually deal directly with long medium and short wavelengths of
light, so we need to rely on approximations. Part of that means say,
bright things being brighter then they ought to be. S not how people
actually experience things, but it's not something we can do anything
about in byond.
Anyway uh, it works by taking color matrixes, and using the plane master
grouping system floyd added to apply them to most all parts of the game
you would want to color correct.
There's some slight fragility here, but I couldn't think of a better way
of handling it.
We also need to deal with planes that have BLEND_MULTIPLY as their
blendmode, since that fucks up the filter. I've come up with a hack for
it, since I wanted to avoid breaking anything.
Oh and since I want it to apply to huds too I added plane masters to
represent them. I think that's about it.
Co-authored-by: Mothblocks <35135081+Mothblocks@users.noreply.github.com>
Essentially SSmapping had a list for each theme of ruin (space, lava,
ice, ice underground). These were all filled with an if statement
checking the ruin templates type. Now, i've given ruins a ruin_type var, which is then used to dynamically add to a single list of ruins, which separates lists of ruins by ruin type.
Good for downstreams who may have more ruin types
Changelog
cl
refactor: Dehardcoded SSmapping ruin types.
/cl
About The Pull Request
This PR makes a few small tweaks to admin tools that I think frequent users may appreciate.
Adds the "Find Updated Panel" button to the player panel, which bring up that ckey's newest PP if one exists. Useful for when the person you're inspecting has changed mobs so you don't have to search for their new mob to get their new panel.
Adds VV and TAG links to all the entries in the Get-Contents right click verb. This should make checking and editing someone's gear easier, since you don't have to VV the person -> their satchel -> their survival box -> their oxygen tank for example, you can just click the VV link for the tank directly.
Lets you ignore punctuation in the F6 player search menu. This was a request, so if you have a silicon named "H.E.R.A.", you can now pull it up by just searching "hera". Also ignores spaces, but I doubt that'll cause any issues.
